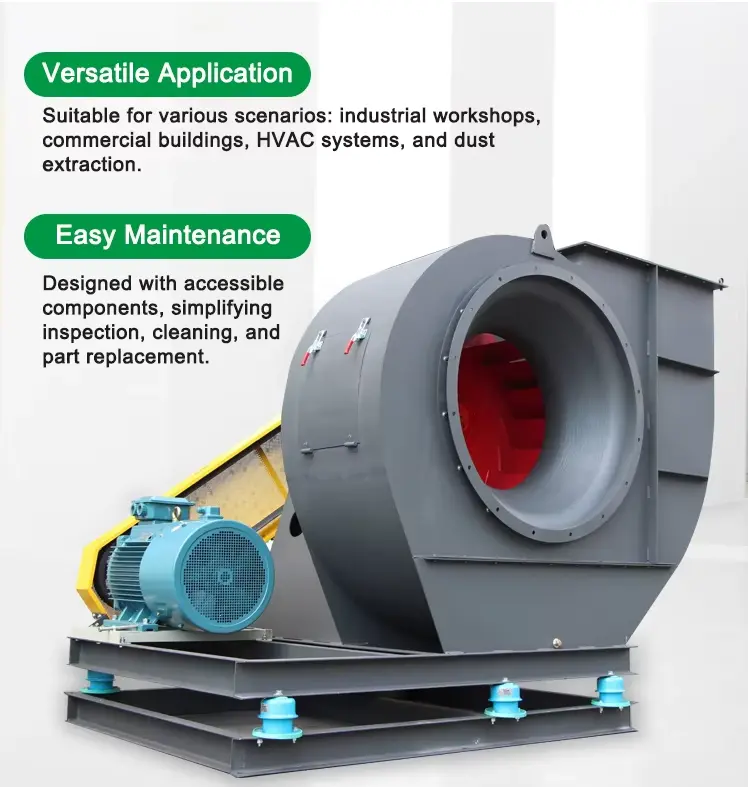

Typus C Centrifuga Ventilator Fan

Hebei Ketong Sinarum Typus C Centrifuga Ventilator Fan elit. Hae alit centrifugae aptae sunt ad copiam mediae pressionis et evacuationem exhauriendam in lineis productionibus et rationum magnarum evacuatione. Coegi cingulum motorem ab impulsore separat, ut sine labore celeritatis commensurationem per machinam systematis inducat. Volumen airfluvium facile augeri vel minui potest, haec fans praecipue idonea ad applicationes faciendas ut frequentes mutationes aeris intensionem praebeant.

Mitte Inquisitionem

depictio producti

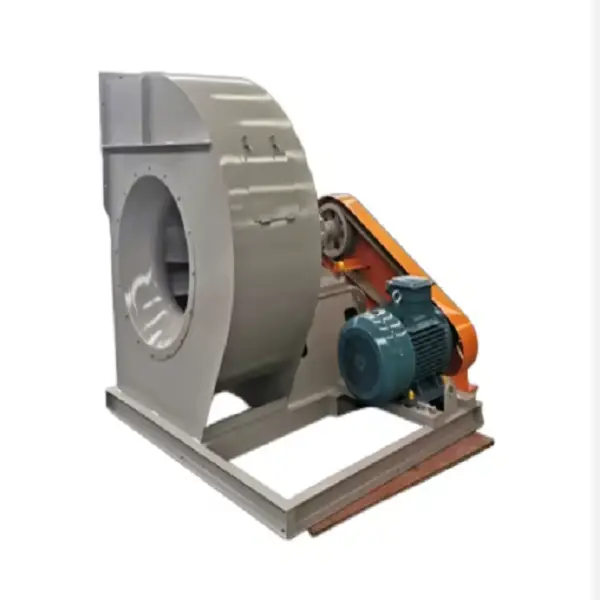

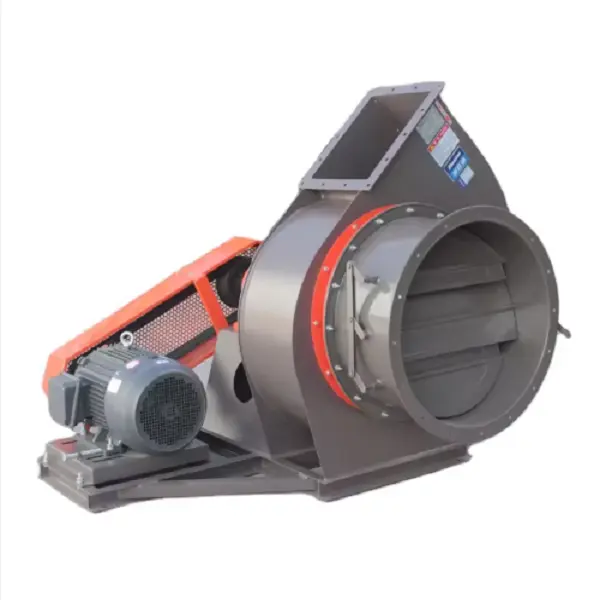

Typus C Centrifuga Ventilator Fan ab Hebei Ketong officinas, maxime adhibitus est gasi mediae pressionis in linearum productionis productione et magnarum evacuatione systemata, propria structura cinguli agitata (motor et impulsor per cingulum rotae connexum), celeritas flexibilis commensuratio, et valida aptabilitas ad volubilis aeris variabilis postulata, faciens specimen pro missionibus quaerunt aptabilem aeris copiam intensio.
Solet in aere instituitur copia evacuationis rationum auxiliariorum boilis industrialis finis, fistulae magnae typographicae et tingendae officinae, aeris circulationis portus officinarum processus mechanici, vel gasi viae mediae amplitudinis vasti gasi praetractationis, responsabilis gasi industrialis industriae exhauriendi, humilem humiditatem aerem, aerem pulverulentum, terrestrem mundanum, aereum pulverulentum, non corrosivum, autumen-sem emundantem, autumen-sem emundationem aeris, non corrosivam; Hae fans de more praebentur instrumentorum auxiliariorum instrumentorum scelerisque potentiarum, magnarum textilium imprimendi et tingendi inceptis, plantarum processus mechanicarum, media mediocri tutela societatum machinalium environmental, aut systematis integratores industriae evacuationis.
Hoc Typus C Centrifuga Ventilator Fan potest occurrere volubili aere variabili importando et evacuatione necessitates productionis linearum industrialium et instrumenti tutelae mediae amplitudinis, dum stricte obtemperans cum signa securitatis operandi industrialis, officina aeris qualitatem emissionis specificationum, et instrumentorum mechanicorum strepitum moderandi requisita.

Morbi condimentum

Project	Celeritas	Potestas	Airflow	Summa pressura
Project	r/min	kilowatt	m³/h	Pa
2.8 C	2900	1.5-2	1131-2356	606-994
2.8 C	2900	0.75-2/220v	1174-1800	619-776
3.2C	2900	2.2-2	1688-3517	792-1300
	2200	0.75-2	1483-3517	579-726
	1800	0.55-2	1213-1860	387-486
3.6 C	2900	3-2	2664-5268	989-1578
	2200	1.5-2	2310-3434	723-881
	1800	0.75-2	1890-2810	483-590
4C	2900	5.5-2	4012-7419	1320-2014
	2300	2.2-2	3573-5491	1238-917
	2000	1.5-2	3107-4775	694-936
	1700	1.1-2	2641-4058	501-676
4.5 C	2900	7.5-2	5712-10562	1673-2554
	2300	4-2	5088-7819	1163-1570
	2000	3-2	4428-6799	879-1187
	1700	2.2-2	3761-5779	635-858
5C	2900	15-2	7728-15455	2019-3187
	2300	7.5-2	7022-11363	1468-1978
	2000	5.5-2	6106-9881	1110-1495
	1700	3-2	5092-8399	802-1080
5.6C	2600	18.5-2	12734-17824	2541-3209
	2300	15-2	11265-15768	1511-1989
	2000	7.5-2	9795-13711	1504-1900
	1700	5.5-2	8326-11654	1086-1372
	1400	3-2	6857-9589	737-930
6C	2240	15-4	10314-20628	1733-2734
	2000	11-4	9209-18418	1380-2176
	1800	7.5-4	8288-16576	1116-1760
	1600	5.5-4	7367-14734	881-1389
	1450	4-4	6677-13353	724-1137
	1120	2.2-4	5157-10314	431-679
	900	1.5-4	4144-8288	278-438
	800	1.1-4	3684-7367	220-346
6.3C	2200	18.5-2	15342-21474	2303-2908
	1900	11-2	13250-18546	1718-2169
	1600	7.5-2	11158-15618	1218-1538
	1300	5.5-2	9066-12689	804-1015
	1000	2.2-4	6973-9761	475-600
	700	0.75-4	4881-6833	233-294
7.1C	2000	22-4	17000-28000	2150-2680
	1800	18.5-4	15736-25265	1980-2294
	1600	15-4	13987-22635	1823-2414
	1450	11-4	12676-20513	1468-1873
	1200	5.5-4	10490-16976	1120-1276
	960	3-4	8392-13581	512-689
	700	1.5-4	6119-9903	272-366
8C	1800	30-2	29646-35240	3032-3143
	1800	37-2	34105-41427	2302-2920
	1600	22-2	29000-31000	2390-2878
	1500	18.5-4	17000-27800	2210-2700
	1250	11-4	15643-25297	1106-1507
	112	7.5-4	17224-19705	887-1124
	1000	5.5-4	13914-1622	707-895
	900	4-4	9832-14620	576-725
	800	3-4	8732-16190	452-485
9C	1500	22-4	20530-28000	1420-2180
	1700	30-4	24800-39850	1850-2720
	1600	37-2	28000-43200	2100-3100
	1450	45-2	29800-45900	2480-3520
10C	1450	55-4	51008-54800	2400-2980
	1350	45-4	45000-50128	1950-2780
	1250	37-4	34863-48797	1877-2373
	1120	30-4	31237-43722	1505-1902
	1000	18.5-4	27890-39038	1199-1514
	900	15-4	25101-35234	970-1225
	800	11-4	22312-31230	766-967
	710	7.5-4	19802-27717	603-761
	630	5.5-4	17571-24594	475-577
	560	4-4	15684-21861	375-437
11.2C	900	30-4	29850-52700	1350-2020
	950	37-4	31980-56470	1550-2320
	980	45-4	34120-60230	1770-2640
	980	55-4	36550-64530	2030-3040
	1000	75-4	40210-70990	2460-3670
12C	1120	75-4	53978-75552	2172-2746
	1000	45-4	48195-60397	1969-2185
	1000	55-4	69953-67457	1729-1859
	900	37-4	13375-60712	1399-1767
	800	22-4	38556-41973	1376-1395
	800	30-4	45391-53996	1104-1321
	710	18.5-4	34218-47895	869-1097
	630	15-4	30362-42498	684-863
	560	7.5-4	26989-29381	676-682
	560	11-4	31774-37776	540-646
12.5 C	1150	132-4	83685-102396	2586-3168
	1000	90-4	72000-91000	2340-2900
	850	75-4	69000-82000	2200-2700
	700	55-4	66000-71000	1980-2400
14C	1300	160-4	98000-118000	2500-3100
	1000	110-4	76535-107124	2361-2985
	950	90-4	69000-96000	2100-2800
	850	75-4	68881-96412	1908-2412
	800	55-4	61228-85699	1506-1903
	710	37-4	54340-76058	1185-1497
	630	30-4	48217-67488	932-1177
	560	18.5-4	42859-59990	736-929
	500	15-4	38267-53562	587-741
	450	11-4	34440-4806	474-599

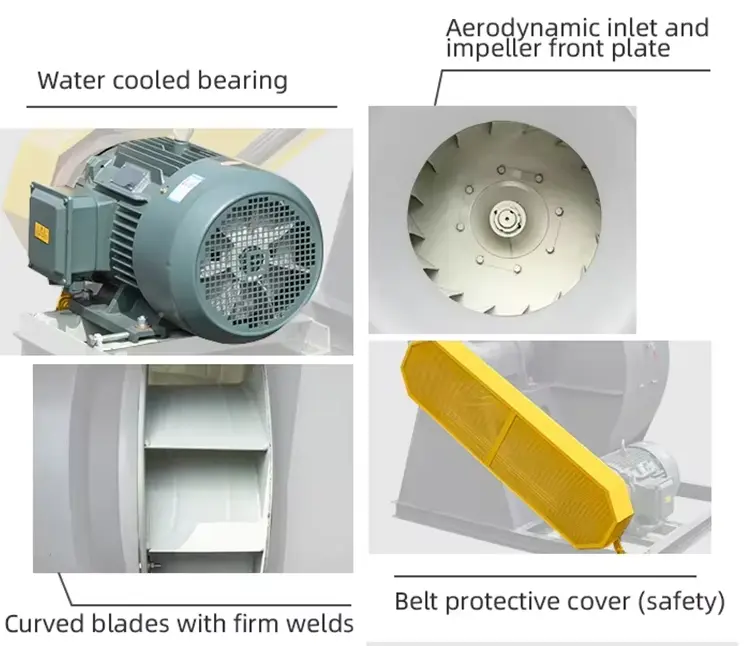

Product Features

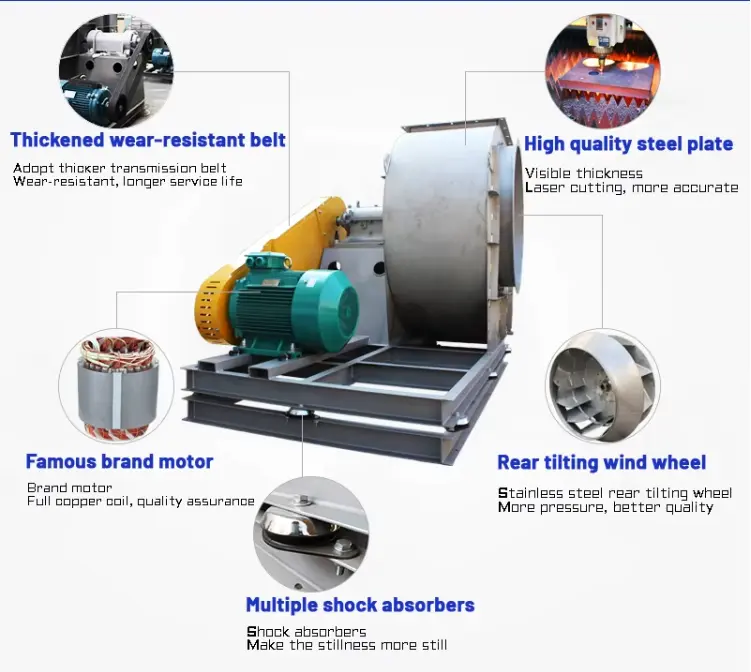

1． Belt flexibilitas: Consilium Ventilatoris Centrifugae Typus C Fan consilium optimam celeritatem moderari praebet, eam permittens ad varias condiciones operandas mollius accommodare.
2． Exaltatio euismod: destinata rationum celeritaterum summa, haec fan features alta velocitas ante ventilabrum, ut id sustineat mundi ambitus operandi maxime postulando.
3． Impellentis dura Constructio: Impellor varias conficit metallicas ac praecisiones adaequat, efficaciter minuens vibrationem et servitium vitae extendens.
4． Securus sustentationem: Securus-tenere partes et consilium modularis faciliorem reddere inspectionem, purgationem, et reponendam partium, obscuratis downtime.

Product Applications

1． VENTILATIO Industrialis: Novam aerem et evacuationem praebet officinas, apothecas et officia.
2．HVAC Systems: Apta calefactio, evacuatio, et rationum conditionum mercatorum et industrialium.
3． Pulvis remotio et Purificatio aeris: Efficaciter removet materiam particulatam et odores ex areis processus.
4．Material Tractatio: Materias in aere tractandas in industriis sustinet ut processus cibi, veneficii, et lignarii.
