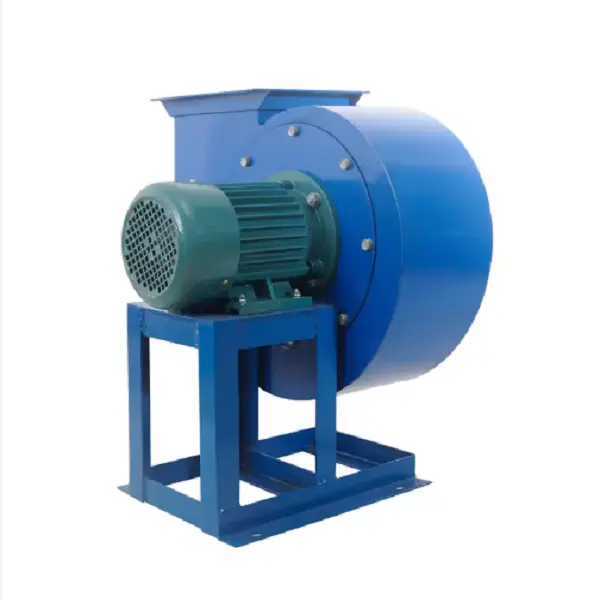

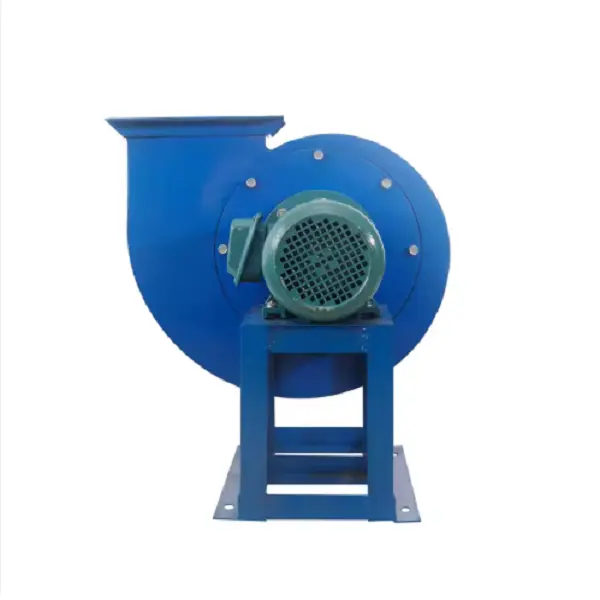

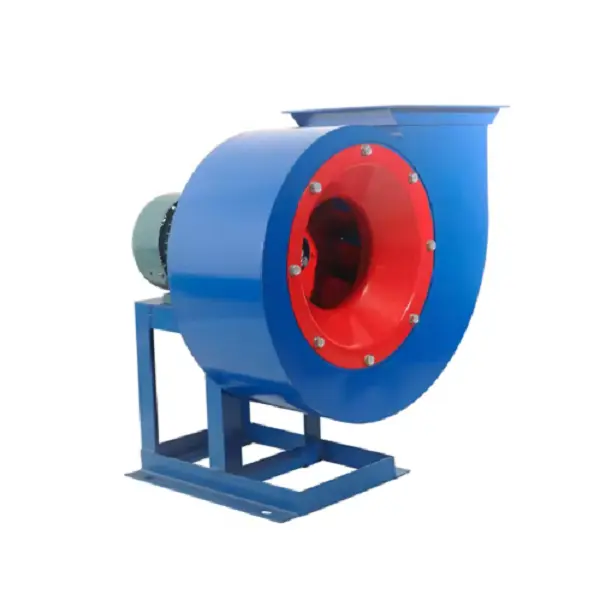

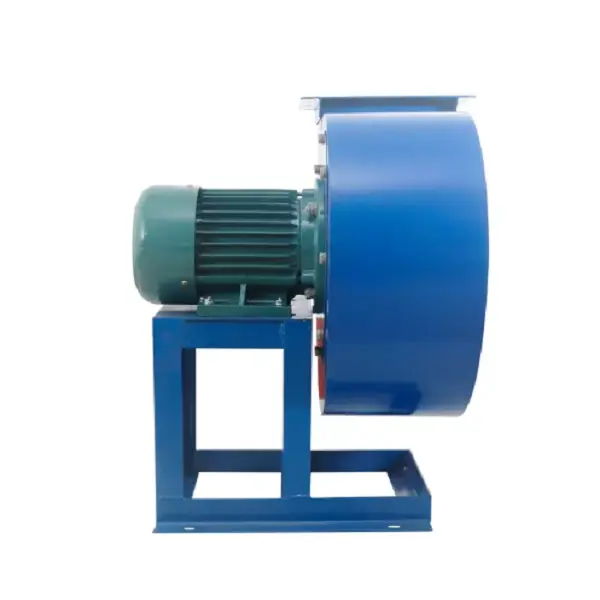

Centrifuga evacuatio Fan

Hebei Ketong praebet Ventilationem Centrifugam Fan in Sinis factam. Ventilae centrifugae in productione industriae, evacuatione commerciali et evacuatione civili late adhiberi possunt. Accommodationem validam habent ad diversos vapores, copiam aeris firmi et faciles sunt instituendi et conservandi. Eae normae sunt exempla in variis systematibus administrationis aeris fluentis.

Mitte Inquisitionem

depictio producti

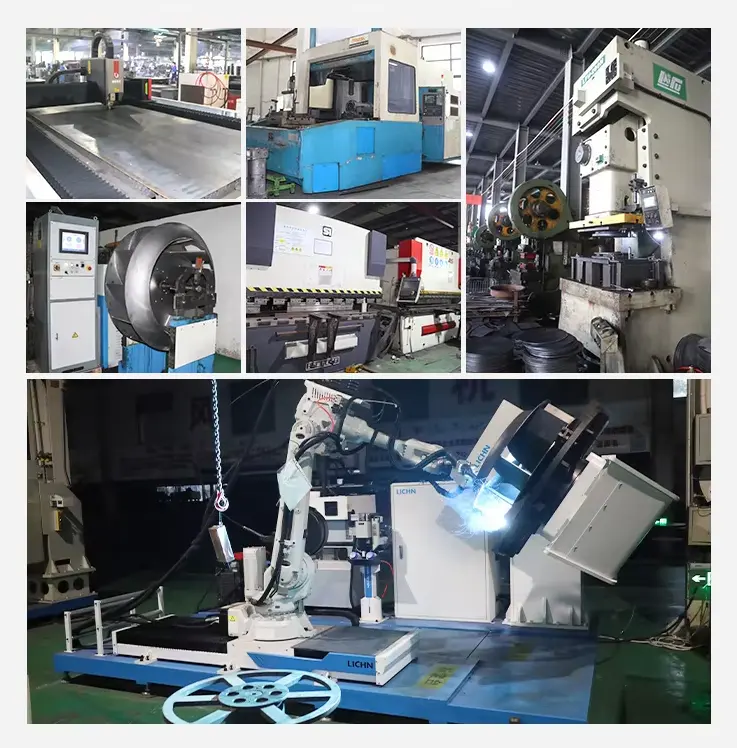

Ut officina, Hebei Ketong qualitatem centrifugam evacuatione Fan pro global clientibus dat. Productum hoc maxime ponitur pro gas transmigratione et circulatione aeris in productione industriae, evacuatione commerciali, et in commercio aeris civilis missionum, aerem stabilem copiam faciendi, capacitatem instrumentorum gasorum, et institutionem facilem et sustentationem, faciens illud commune instrumentum in variis systematibus administrationis aeris fluens.
Plerumque constitutum est in aere limbo ex officinae evacuatione reticulorum industrialium, defatigati finis commercialis structurae centralis aeri conditionis systemata, aer circulatio portus civilis culinae systemata exhaurit, vel gasi organum fistulae parvae exigui instrumenti remotionis, responsales ad novum aerem, normalis temperatura exhauriunt gas, humilis-concentratio aeris pulveri, vel cottidiana aeris circulatio instrumentorum.
Haec alitalia typice praebentur ad officinas fabricandas industriales, mercatorum shopping centrum, res residentiales administrationis societatum, parvae et mediae obsonationis stabilimenta, seu generales evacuationis instrumentorum distributores. Haec Ventilator Centrifuga Ventilator Fan potest occurrere variis necessitatibus aeris commutationis, gasi deferendi, et evacuationis et exhauriendi in campis industrialibus, commercialibus et civilibus, dum stricte obtemperans cum propriae operationis officinae aeris qualitates, signa, industriae in officina aeris condiciones, signa et industriae in officina propriae operationis.

Morbi condimentum

NO. Potestas φ1 φ2 φ3 A1 A2 A3 a°×									B1 B2 B3 by				n1-d1 C1 C2C3 C4 C5 E E1 H H1 H2 H3 L1														n2-d2 (Kg)
2A	0.55-2	200	220	238	146	178	206	2*89	150	182	210	2*91	8-φ8	205	235	240	30	300	319	144	258	400	126	142	420	77	4-φ10	22
2.5A	0.75-2	250	280	296	168	200	228	2*100	196	228	258	2* 114	8-φ8	180	210	260	30	320	415	176	318	520	178	202	420	88	4-φ10	33
2.8A	1.5-2	280	306	324	190	226	254	4*56.5	206	244	272	4*61	16-φ8	280	310	380	30	440	459	191	370	596	196	226	500	103	4-φ10	40
32A	22-2	320	350	367	224	254	284	4*63.5	251	282	310	4*70.5	16-φ8	280	310	410	30	470	528	222	420	680	224	258	543	116	4-φ10	52
	1.1-4													280	310	410	30	470	528	222	420	680	224	258	531	116	4-φ10	50
3.6A	3-2	360	394	416	252	284	312	4*71	281	313	343	4*78.3	16-+8	290	330	425	40	505	592	248	460	750	252	290	611	130	4-φ10	67
	1.1-4													290	330	425	40	505	592	248	450	740	252	290	546	130	4-φ10	58
4A	55-2	400	440	462	278	310	338	4*77.5	317	349	377	4*87.3	16-φ8	366	416	510	50	610	656	274	520	842	280	322	710	145	4-φ12	92
	1.1-4													235	275	450	40	530	656	274	520	842	280	322	575	145	4-φ10	68
4.5A	7.5-2	450	490	512	315	345	373	3*115	348	380	408	5*76	16-φ8	366	416	545	50	645	725	297	560	920	315	495	745	160	4-φ12	128
	1.1-4													245	295	460	50	560	725	297	560	920	315	495	610	160	4-φ12	79
5A	15-2	500	550	572	350	380	408	5*76	390	422	450	5*84	20-φ8	400	450	710	50	810	800	325	620	1020	350	400	878	180	4-φ14	223
	22-4													265	315	520	50	810	800	325	620	1020	350	400	705	180	4-φ14	106
5.BA	34	560	610	640	388	420	448	4*105	440	472	500	4*118	16-φ8	265	315	570	50	670	917	382	700	1151	392	451	745	200	4-φ14	135
6A	4	600	645	676	419	451	479	5*90.2	474	506	534	5*101.2	20-φ8	295	345	595	50	695	964	392	740	1222	420	482	795	215	4-φ14	155
	1.5-6													295	345	595	50	695	964	392	728	1210	420	482	775	215	4-φ14	140
6.3A	754	630	680	710	441	473	501	5*94.6	502	534	562	5*106.8	20-8	376	436	645	60	765	1080	480	800	1306	441	506	870	230	4-φ14	221
7.1A	11-4	710	755	800	497	544	5845	5*108.8	568	614	654	5* 122.8	20-φ10	410	470	820	60	945	1156	475	880	1455	494	575	1065	255	4-φ14	360
	36													376	436	705	60	825	1156	475	880	1455	494	575	945	255	4-φ14	263
Pelagus parametri
Exemplar ac Vide numerum (M)						celeritas gyratoria (r/min)					Motor (kw-p)						fluere (m³h)						Plena pressura (pa)
2A						2900					0.55-2						412-859						507-310
2.5A						2900					0.75-2						805-1677						792-483
2.8A						2900					1.5-2						1131-2356						994-606
3.2A						29001450					2.2-2 1.1-4						1688-3517 884-1758						1300-792 324-198
3.6A						29001450					3.0-2 1.1-4						2664-5268 1332-2634						1578-989 393-247
4A						29001450					5.5-2 1.1-4						4012-7419 2006-3709						2014-1320 501-329
4.5A						29001450					7.5-2 1.1-4						5712-10562 2856-5281						2554-1673 634-416
5A						29001450					15-2 2.2-4						7728-15445 3864-7728						3187-2019 790-502
5.6A						1450					3-4						7062-9885						975-759
6A						1450960					4.0-4 1.5-6						6677-13353 4420-8841						1139-724 498-317
6.3A						1450					7.5-4						7729-15458						1256-798
7.1A						1450960					11-43-6						12676-20513 8392-13581						1573-1168 689-512

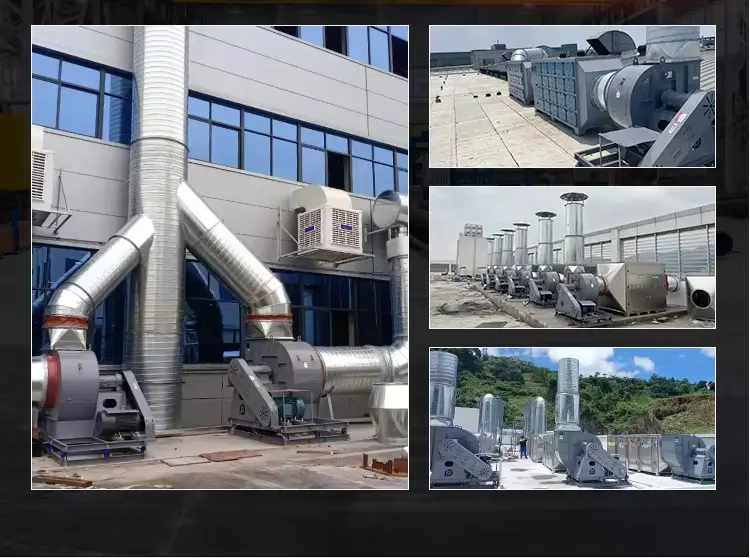

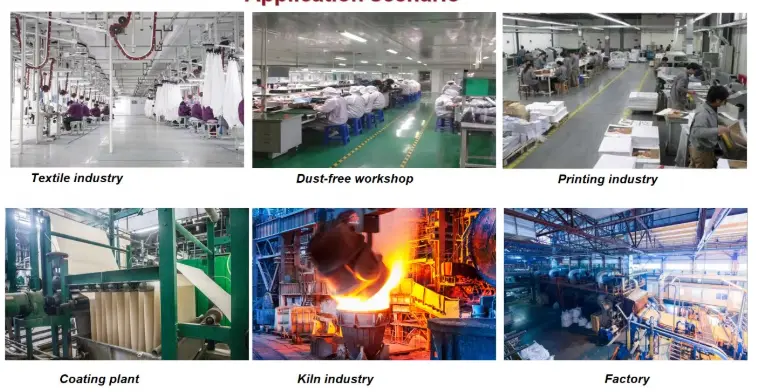

Product Applicationem

I Industrial Aircrafts Systems
2．HVAC Air Tractantem Unit
III, Pulvis Eliminatio et fumus extractionis
IV, Refrigerationem et remittit Systems
V Material Tractantem Applications
